Porch Screening Systems

Extruded Aluminum Frame Screen Walls



Our porch screening systems help you create a new outdoor living space. We provide you with extruded aluminum frames complete with screening  and hardware that, when put together, create a permanent installation. Otherwise known as screen wall kits, they are custom designed to fit your needs. High quality, durable and maintenance free, the aluminum frames come in a variety of colors. These well designed do it yourself applications will help protect you from the West Nile Virus by helping you stay clear of that pesky mosquito.

  Follow us on Facebook     Check in with our Blog regularly     Go to our YouTube channel!    |        Screenhouses Unlimited is a BBB Accredited Business. Click for the BBB Business Review of this Screen Enclosures in Barrie ON    |   Home Improvement and Do it Yourself Kits: Screen Enclosures, Backyard Sheds, Outdoor Lighting, Retractable Awnings and many more DIY Kits


Our Represented Manufacturers are... Mason Corporation

Proudly made in U.S. of A.






Previous Page

Extruded Aluminum Frame Screening Kit


Brochure
Get
A Screen Walls Quote!

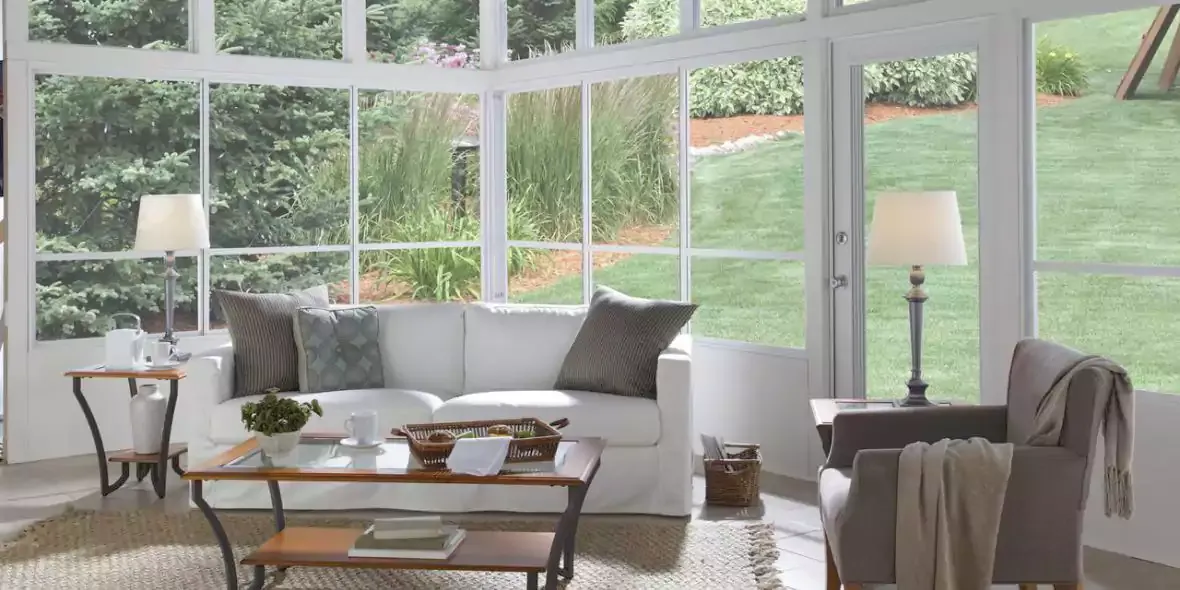

Optional Clear Vinyl Windows
Get a Vinyl Window Quotation

Special Feature:
Click on the
"My DIY Experience"
to get a real customer experience with this product....

My DIY
Experience

Screen Walls Assembly
Manual

Screen Door Assembly
Manual



Apart from the specials listed on our WEB site, almost any size you need is possible... Click here to know what you need for a quotation... No obligation quotations!



Need a simple PATIO COVER? Hundreds of sizes!
Click here...



Need SCREEN WALLS ONLY for your covered porch?
Click here...

Hi Glenn, Sorry I have not got back to you sooner. I just want to say that we are all very pleased with the porch screening product and the service provided by everyone at Patio Concepts and Screen Houses Unlimited. Although we had some difficulties with damage due to manufacturer shipping, all items were returned and reshipped in a timely fashion with your help. Thanks again for your patience and your help in working with me to get the screen room that we always wanted.  - -  Brian Darrach (Canada)



No obligation quotations!

Nation-wide factory to door delivery!

3-4 week delivery times

Almost any size is possible!

Over 14 years experience in helping you do it yourself!

Aluminum Frame Screen Systems

Toll Free help line ... 1.800.922.4760

Shipment tracking

Over 14 years supplying contractors, government, commercial, HOA's and commercial corporations... click







About the Frame:

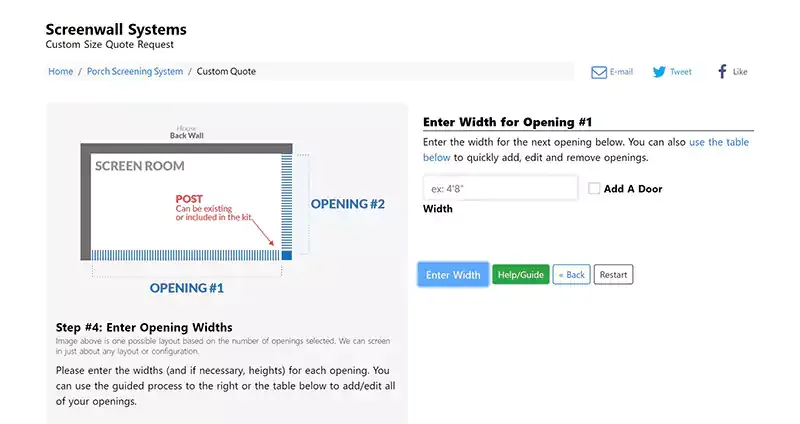

  1. Click here to know what you need for a quotation...


  2. This is a "materials supplied" screen room kit designed to add beauty and functional 3 season living space to your home. In order to close in your existing roof line, you will receive 16' and 20' lengths of the aluminum extrusions. You will be cutting both the vertical and horizontal components to construct your screen walls from these lengths. A chop saw with a metal blade is all you need. This will include all the screws, mullion clips, spline, screening and weather-stripping required for your application.


  3. U Channels:
    These are installed first. 1" x 2" U channels are installed on the floor and on house wall or existing posts. 2" x 2" U channels are installed on the underside of the roofing material.
    Horizontal extrusions are 1" x 2" / Vertical extrusions are 2" x 2"


  4. Main Frames:
    **These are installed next. 2" x 2" frames are used vertically and their spacing is indicated by red dots in your quotation drawing. If there is no kickplate, then you will be using the 2" x 2" frames as horizontal "chair rails" between the verticals.
    **The 1" x 2" frames are also used vertically and are indicated by green dots in your quotation drawing. The 1" x 2" frames will be installed in the U channels both on the floor and on the underside of your roof. If you have opted for the kickplate, they will also cap the top of your kickplate.

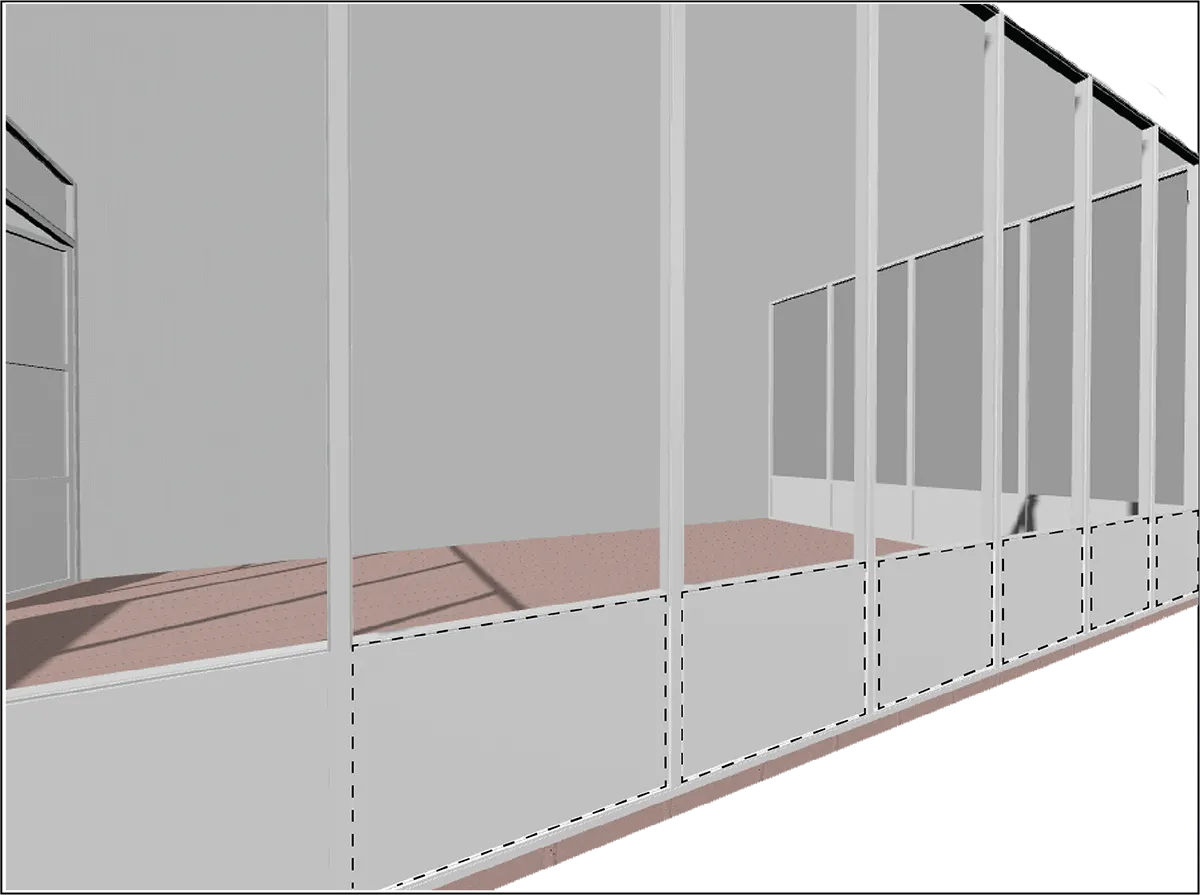

  5. You will need to make a  choice of no kick-plates or 18" or 24" kick-plates

  6. With 'no' kickplate, the horizontal 2x2 that is installed between verticals can be placed at any height you wish. We recommend somewhere below the midpoint to create a clear line of sight for when you are seated in the room.

  7. Your wall height is determined by the highest 'floor to ceiling' measurement in your existing structure.

  8. We will suggest a screen panel width of 29" to 44" wide depending on your system and the loading requirements. You will receive a drawing from us indicating both 1x2 & 2x2 mainframe placements

  9. You may choose to have as many 3' x 6'8" out-swinging knock down aluminum doors as you deem necessary.

    General Information:


  10. The framing is all extruded aluminum with baked on enamel finish

  11. All parts are screwed together. No plastic pieces. The supplied hardware is extruded aluminum for maximum strength and weather-ability.

  12. The room MUST be screwed to a deck or patio.

  13. All pricing includes regular charcoal fiberglass screening with an 18x16 nominal mesh count and all the spline necessary for installation.

  14. This is a very high quality, long lasting screen room that is easily assembled within one to two days depending on the size.

  15. Attaches to your home or cottage wall

  16. Color Choices:  Frame Extrusions - WHITE / CLAY / BRONZE

  17. Tools You May Need...click here

  18. Full one year warranty against manufacturers defects

Not included in your kit:

  • Screws to attach u-channel to house wall.

  • Sealant for u-channel to concrete or floor connection. We suggest using Tapcon screws in addition to the sealant.

  • Downspout assemblies





Click to enlarge...






 Click on the pictures below to get a larger view...

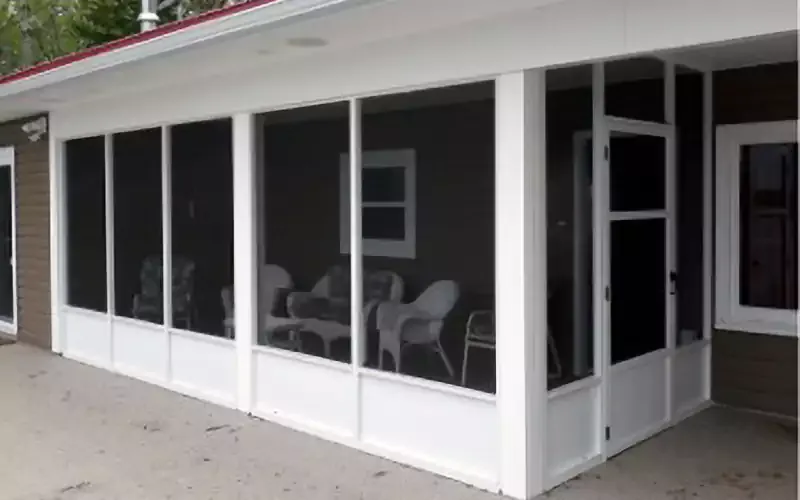

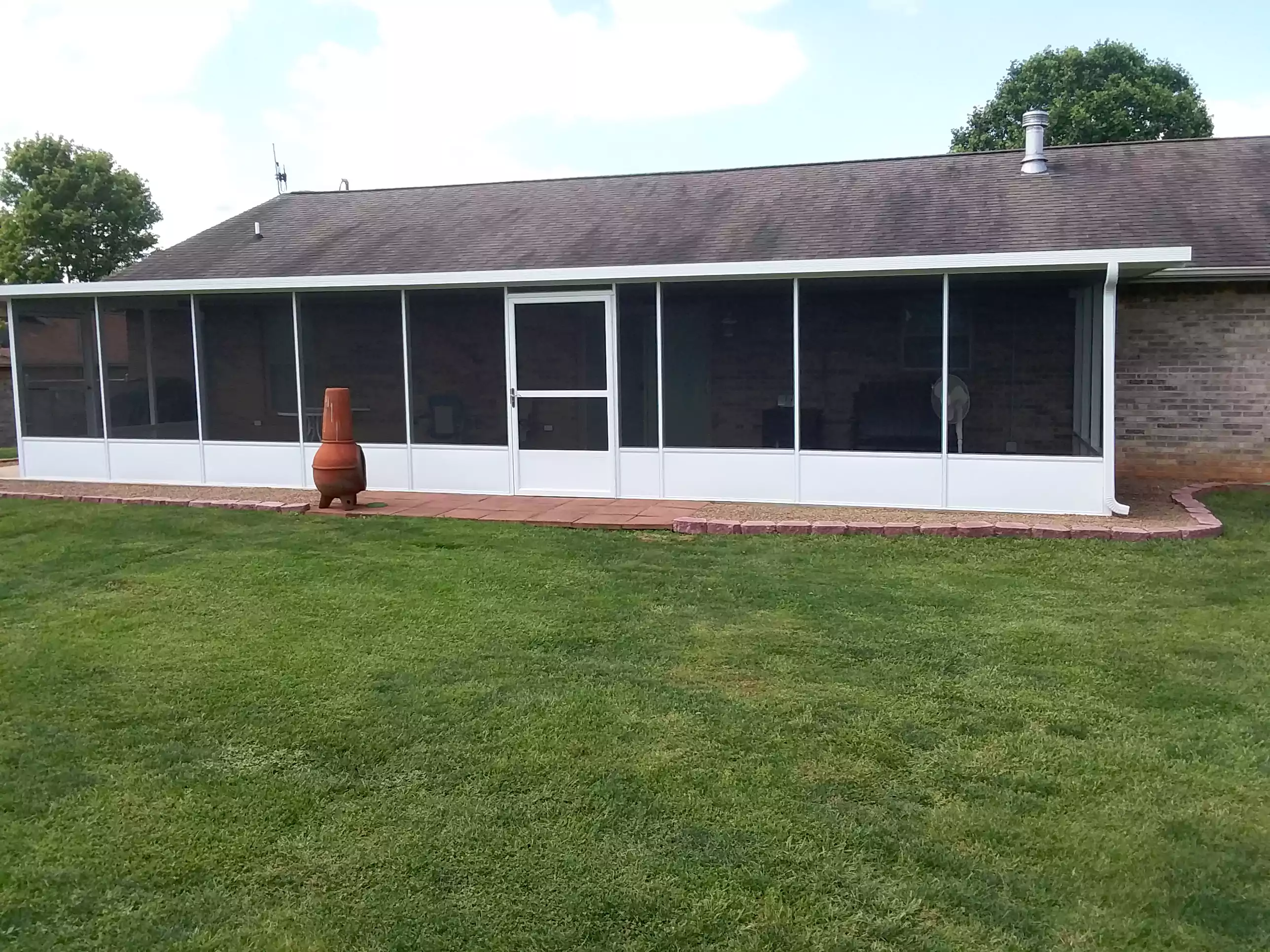

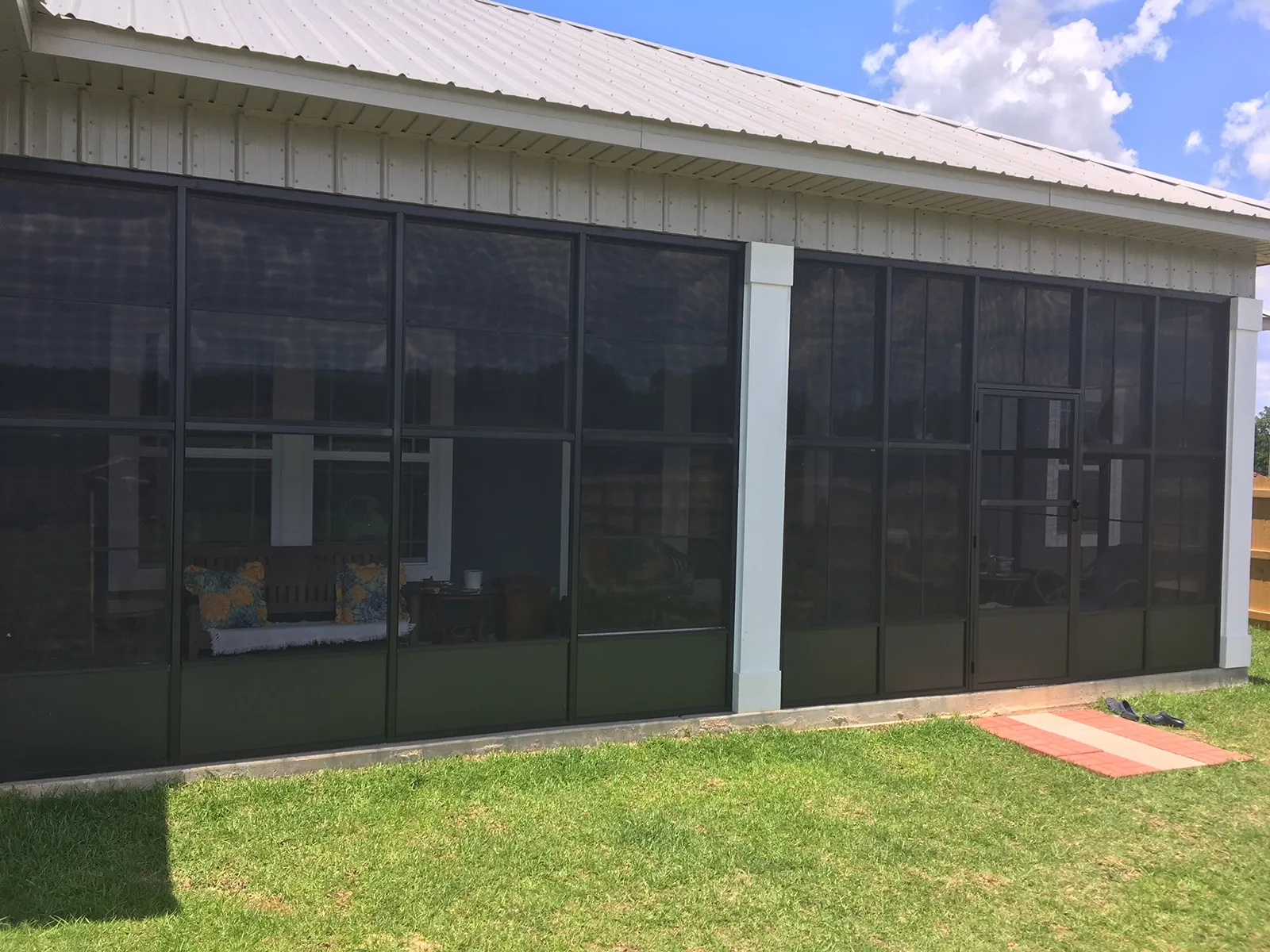

 Check out what the finished product looks like...


Screen wall system with aluminum kickplate shown Aluminum screen wall and the screen / spline shown




H122 - Vertical supports

H120 - Replaces the H122 on a corner

H121 - Horizontal supports...top, bottom and mullion

H123 - top and bottom U channels


We carry over 100 different combinations of gazebos in sizes and colors designed to fit most decks and patios. If you don't see it here, call us, we will be pleased to advise and assist. Obtaining and understanding the need for permits (if applicable) is the buyers responsibility.

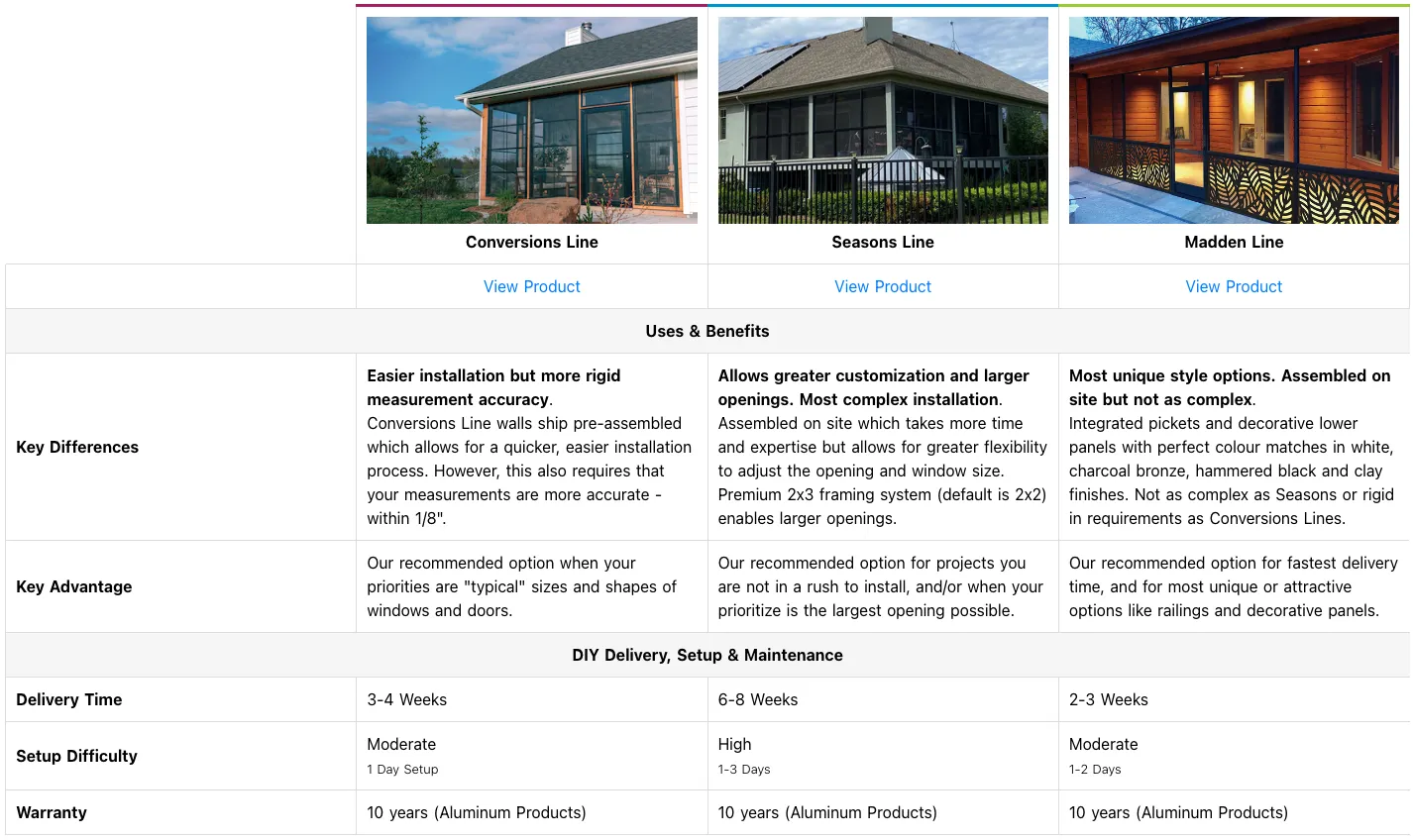

Compare our manufacturers!
