Features:
-
Engineered roof panel system can be configured for any
lb./sq. ft. snow load rating and up to 120mph winds (see load tables given below)
-
The size of beam, beam placement, number of posts and distance between posts are all dependant on your local load rating requirements... (see "how to get a quotation" page)
-

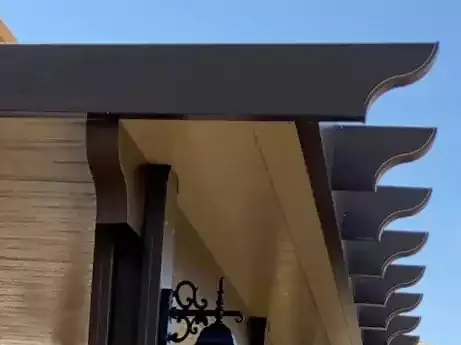

Fascia gutters available white, clay or bronze (not available in all sizes)
-
Roof panels are available in white
-
Factory painted columns and beams.
-
Depending on load requirements we have 7 sizes of beams available in white,
ivory or
dark bronze (not available in all sizes).
-
Posts with wall thicknesses of .078" / .125" gauge extruded aluminum available in white, ivory or dark bronze.
-
Designed and engineered for loading in your area.
-
Don't
hesitate to call us toll free with questions
800.922.4760
-
You will
need to find out your wind and snow load rating from your local building
department in order for us to stand behind International Building Code
standards
-
Downspouts are not included
-
Insulated Patio Cover "Quick Links..."
Tools
You May Need...click here
Pictures and Details Page

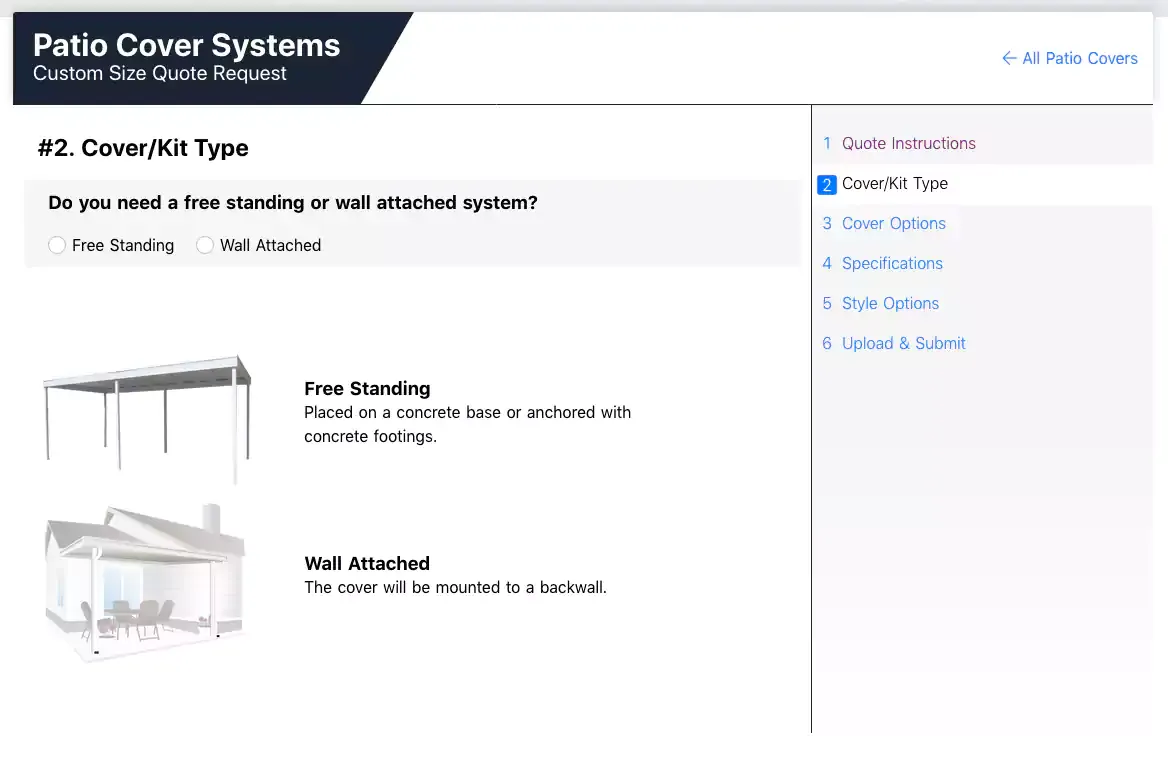

Click here for all you will need to get a quote from us...
Not included in your kit:
| Apart from the specials listed below, almost any size you need is possible. We would be pleased to provide you with a quotation. In order to get a quote... You will FIRST need to call your local building department to get the required load ratings for your area.
Click here to know what you need for a quotation... |
2013 - - 3" Thick Roof / 20' Wide Specials!
Each of the 20' wide units below come with: (5) x 4' wide, 3" thick roof panels, (1) x 20' long 3"x3"x.125" extruded aluminum beam, rear extruded and thermally broken header, side extruded fascia, front extruded gutter, 8' tall 3"x3" square extruded aluminum posts with top and bottom brackets, 4" lags for panel to beam connection, sealant, tar tape, drain scuppers, all necessary hardware and touch up paint.
|
SIZE
(All roof panels are 3" thick ) |
# of Posts |
Beam -
20ft. |
Live Load Rating
@ 90mph winds |
Beam Placement
(out from wall) |
Maximum distance
between posts
( lbs./sq. ft. rating) |
US$ -
Credit Card
Delivery Included |
|
20 |
30 |
|
8' Proj. x 20' Wide |
(3) x 8' |
(1) 3" x 3" x 20'
(.125" ga.) |
Meets up to 30psf |
7' |
8'6" |
7'7" |
$2268.00 |
|
10' Proj. x 20' Wide |
(3) x 8' |
(1) 3" x 3" x 20'
(.125" ga.) |
Meets 20 psf |
9' |
8' |
n/a |
$2565.00 |
|
12' Proj. x 20' Wide |
(3) x 8' |
(1) 3" x 3" x 20'
(.125" ga.) |
Meets 20 psf |
11' |
7'7" |
n/a |
$2835.00 |
|
20' Proj. x 20' Wide |
(6) x 8' |
(2) 3" x 3" x 20'
(.125" ga.) |
Meets 20 psf |
9'6" & 19' |
8' |
n/a |
$4684.50 |
|
24' Proj. x 20' Wide |
(6) x 8' |
(2) 3" x 3" x 20'
(.125" ga.) |
Meets 20 psf |
11' & 22' |
7'7" |
n/a |
$5366.25 |
|
 OR Get a 5% Discount by sending a CASHIER'S CHECK |
**Projection = distance away from building / Width = distance along the building
2013 - - 3" Thick Roof / 24' Wide Specials!
Each of the 20' wide units below come with: (6) x 4' wide, 3" thick roof panels, (1) x 24' long 3"x3"x.125" extruded aluminum beam, rear extruded and thermally broken header, side extruded fascia, front extruded gutter, 8' tall 3"x3" square extruded aluminum posts with top and bottom brackets, 4" lags for panel to beam connection, sealant, tar tape, drain scuppers, all necessary hardware and touch up paint.
|
SIZE
(All roof panels are 3" thick ) |
# of Posts |
Beam -
20ft. |
Live Load Rating
@ 90mph winds |
Beam Placement
(out from wall) |
Maximum distance
between posts
( lbs./sq. ft. rating) |
US$ -
Credit Card
Delivery Included |
|
20 |
30 |
|
10' Proj. x 24' Wide |
(4) x 8' |
(1) 3" x 3" x 20'
(.125" ga.) |
Meets up to 30psf |
9' |
8' |
7' |
$2907.90 |
|
12' Proj. x 24' Wide |
(4) x 8' |
(1) 3" x 3" x 20'
(.125" ga.) |
Meets up to 30psf |
11' |
7'7" |
6'7" |
$3310.20 |
|
20' Proj. x 24' Wide |
(8) x 8' |
(2) 3" x 3" x 20'
(.125" ga.) |
Meets up to 30psf |
9'6" & 19' |
8' |
7' |
$5537.70 |
|
24' Proj. x 24' Wide |
(8) x 8' |
(2) 3" x 3" x 20'
(.125" ga.) |
Meets up to 30psf |
11' & 22' |
7'7" |
6'7" |
$6349.05 |
|
OR Get a 5% Discount by sending a CASHIER'S CHECK |
**Projection = distance away from building / Width = distance along the building
2013 - - 4" Thick Roof / 20' Wide Specials!
Each of the 20' wide units below come with: (5) x 4' wide, 4" thick roof panels, (1) x 20' long 3"x3" extruded aluminum beam, rear extruded and thermally broken header, side extruded fascia, front extruded gutter, (4) x 8' tall 3"x3" square extruded aluminum posts with top and bottom brackets, 5" lags for panel to beam connection, sealant, tar tape, drain scuppers, all necessary hardware and touch up paint.
|
SIZE
(All roof panels are 4" thick ) |
# of Posts |
Beam -
(1) 20ft. |
Live Load Rating
@ 90mph winds |
Beam Placement
(out from wall) |
Maximum distance
between posts
(Based on lbs./sq. ft. rating) |
US$ -
Credit Card
Delivery Included |
|
20 |
30 |
40 |
50 |
|
8' Proj. x 20' Wide
(Quote # 141513) |
(4) x 8' |
3" x 3" x 20'
(.125" ga.) |
Meets 20, 30, 40 & 50 lbs./sq.ft. |
7' |
8'6" |
7'5" |
6'8" |
6'3" |
$2770.79 |
|
10' Proj. x 20' Wide
(Quote #141514) |
(4) x 8' |
3" x 3" x 20'
(.125" ga.) |
Meets 20, 30, 40 & 50 lbs./sq.ft. |
9' |
8' |
7' |
6'4" |
5'10" |
$3096.48 |
|
12' Proj. x 20' Wide
(Quote #141515) |
(4) x 8' |
3" x 3" x 20'
(.125" ga.) |
Meets 20, 30 & 40lbs./sq.ft. |
11' |
7'7" |
6'7" |
6' |
n/a |
$3445.83 |
|
14' Proj. x 20' Wide
(Quote #141517) |
(4) x 8' |
3" x 3" x 20'
(.125" ga.) |
Meets 20 & 30lbs./sq.ft. |
13' |
7'2" |
6'3" |
n/a |
n/a |
$3855.69 |
|
OR Get a 5% Discount by sending a CASHIER'S CHECK |
**Projection = distance away from building / Width = distance along the building
|
